The complete technical specifications of the HDfury Integral 2 — resolutions, bandwidth, connections, audio formats, power and dimensions. These match the printed specifications on the retail packaging and in the manual.
4K24/25/30/50/60 <> 1080p24/25/30/50/60 upscale/downscale, with or without maintained colour depth, and with or without HDCP, chroma or colour space conversion
Video bandwidth
18Gbps
HDR
HDR10, HDR10+, Dolby Vision support
Colour depth
4K 10, 12, 16-bit support; up to 16 bits per pixel (48-bit total)
Yes, each input can carry a specific/individual EDID
EDID modes
Automix (mixed from both sinks), Custom (selected bank or uploaded file), Fixed (basic safety table)
Audio
Formats
PCM up to 192kHz, compressed audio (IEC61937), DSD, DST, DTS, DTS-HD, Dolby TrueHD, DTS-MA, HBR, DD+, DTS:X and Dolby Atmos
De-embedding
Analog L/R and optical S/PDIF, via combo 3.5mm jack
S/PDIF limit
Stereo and 5.1 only
Analog limit
Stereo only
Supported resolutions
All standard SD, HD, Full HD and UHD formats, examples: 480p, 720p, 1080i, 1080p24/25/30/50/60, 1440p50/60, 2160p24/25/30/50/60 and DCI, plus all VESA PC resolutions up to WQSXGA, QUXGA, QFHD and WQUXGA — anything within the 600MHz bandwidth is supported.
Physical & power
Product dimensions
3.9″L x 2.4″W x 0.8″H — 10 x 6 x 3cm
Weight
130g (0.3 lbs)
Shipping dimensions
6.3″ x 4.2″ x 3.3″, 16oz
Enclosure
Black PVC / black metal, with green/blue LED
Power supply
External 5V DC, 2.0A regulated (±5%), mini-USB connector — same class as most smartphone/tablet chargers
Power consumption
Under 2 watts
Input lag
A few pixel clocks only — not noticeable
Regulation
CE, FCC, RoHS, WEEE
The Integral 2 power supply is not the same as the one used by the HDfury1, HDfury2 or GammaX (0.5A–1A max). Using an underrated supply can damage the unit — see the no-signal troubleshooting guide if the LOGO stays off.

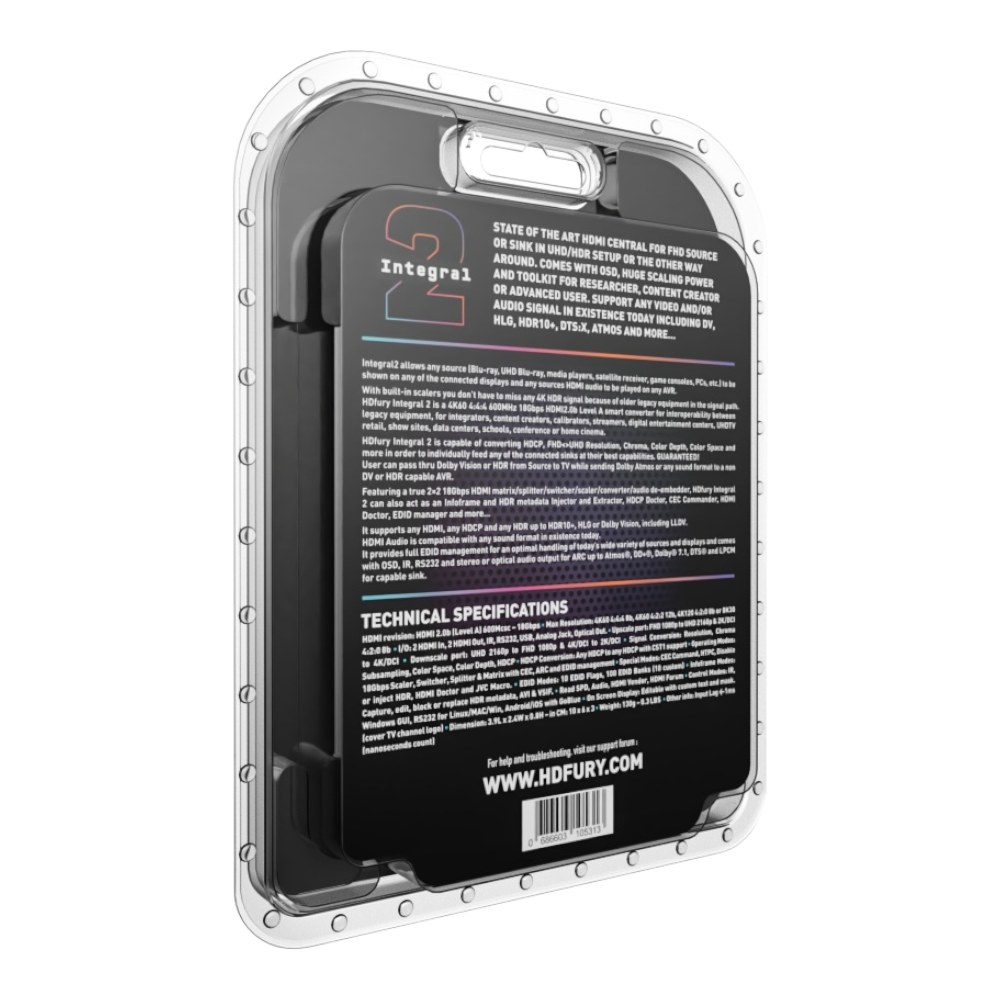

Straight from the box
The retail packaging sums it up as a “state of the art HDMI central for FHD source or sink in UHD/HDR setup or the other way around” — a true 2×2 18Gbps HDMI matrix/splitter/switcher/scaler/converter/audio de-embedder that supports any video and/or audio signal in existence today, including DV, HLG, HDR10+, DTS:X and Atmos.
Video processing in detail
Upscale port (OUT0/BOT)
FHD 1080p to UHD 2160p & 2K/DCI 4:2:0 8-bit; upscaling can be disabled to let the display do it
All VESA modes up to WQSXGA, QUXGA, QFHD and WQUXGA
Rule of thumb
These are examples only — anything within the 600MHz bandwidth is supported
CEC, OSD and system features
CEC
Inter-device control between both inputs and the primary (BOT) HDMI output; CEC device type selectable (Video Processor ID#5 / Audio System w/ARC); live CEC commands in HEX
ARC
Via the BOT output; DD+/Atmos forwarding to an AVR that accepts 192kHz over optical
OSD
On-screen signal information with position, colours, field selection, fade timer, burn-in mask and custom text
HDMI booster/extender
Extends 1080p up to 15m in and 15m out (30m total); UHD up to 10m; amplifies and recovers the signal mid-run
HDMI Doctor
Solves most HDMI integration issues: HDCP, EDID, HPD and audio breakout
HDMI Equalevel
Precise signal equalization on both input and output signals for the best possible picture with no dropouts
Hot-plug control
Forces the input device to always see an active connection
Colour support
Deep Color up to 16-bit per pixel (48-bit), xvYCC
3D
3D ready: passes 3D stereoscopic signal formats
API
Public API/DLL access to extract, edit and inject HDR metadata, AVI and VSIF, read SPD/Audio/Vendor Specific and more — package on the downloads page
Portability
Flexible, portable, plug'n play
Control & integration in detail
IR
289 discrete NEC codes (full list with codes); Pronto HEX files in every firmware package; registered with Logitech Harmony and iRule
RS232
19200 baud, no parity, 1 stop bit, no handshake; jack wiring TIP=TX, RING=RX, SLEEVE=GND; full command reference (V1.13 MCU)
USB GUI
Windows XP through 10/11 (with the matching Silabs driver); config import/export as a text file
Mobile app
Total Control APP for Android/iOS via the GoBlue Bluetooth dongle; range over 10m, works without an active video signal; custom menus via editable XML (Android)
On the unit
2 push buttons (RESET, INFO) and 3 slide switches (EDID, SCALE, HDCP), summarised on the backside sticker
Control
IR, Windows GUI (USB), RS232 (Linux/Mac/Windows), Android/iOS via the optional GoBlue Bluetooth dongle, and physical push buttons/slide switches on the unit.
What's included with a purchase
Per the official HDfury.eu listing: the Integral 2 unit, a choice of regional power supply, a 5ft USB Y-cable, and a 4ft DB9-to-RS232 jack cable.
